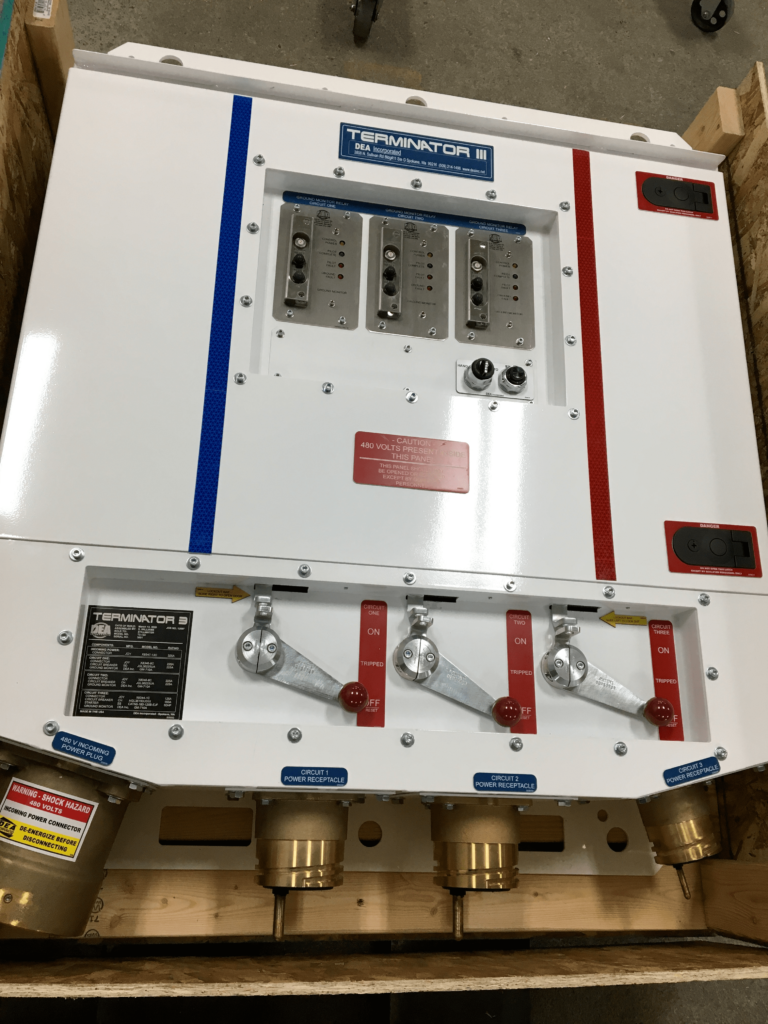

Terminators T3
Triple-Circuit Industrial Control Unit with Patented Arc Flash Mitigation
NEMA 3R-rated Terminators T3 delivers reliable overcurrent and ground fault protection for three circuits in a rugged, dead-front enclosure for demanding mining and industrial environments.
Features Include:
- Overcurrent protection and Ground Fault/Ground Check monitoring of one circuit
- Patented Rear Side Operator keeps all energized parts inside of the steel enclosure and reduces arc flash exposure
- Dead Front construction, all control parts recessed Lock out equipped
- Run light and H-O-A control for each starter
- Rugged design with flanges designed for simple mounting to rib, wall, strut, etc.
- Durable safety placards and reflective striping
- Strobe/steady light for additional visibility
- Enclosure built to NEMA 3R standards
- Compact Design 43x37x10″ (HxWxD)
Configuration:
- Ground Monitor: DEA GM710A, Startco
- Breaker Manufacturer: Square-D, Cutler-Hammer
- Breaker Amperage: 50, 60, 70, 100, 125, 150, 200, 225, 250
- Connector Manufacturer: SMS, Joy, Patton & Cooke, Line Power, other
- Connector Amperage: 75, 125, 145, 160, 225, 300, 325, 500
- Starter Manufacturer: Square-D, Sprecher+Schuh, Eaton
- Starter Size: Size 1, Size 2, Size 3, Size 4
Circuit Specifications:
- Breaker Amperage: 50, 60, 70, 100, 125, 150, 200, 225, 250
-
Connector Amperage: 75, 125, 145, 160, 225, 300, 325, 500
(cannot be smaller than breaker amperage) - Starter Size: Size 1, Size 2, Size 3, Size 4
